Feature:

1. CE certified according to EC machinery directive 2006/42/CE.

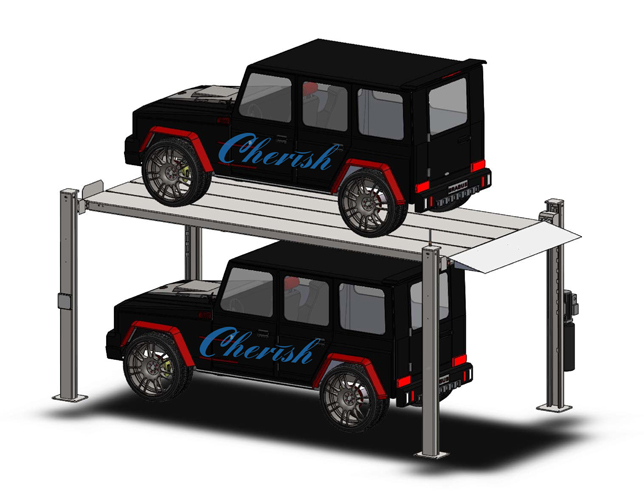

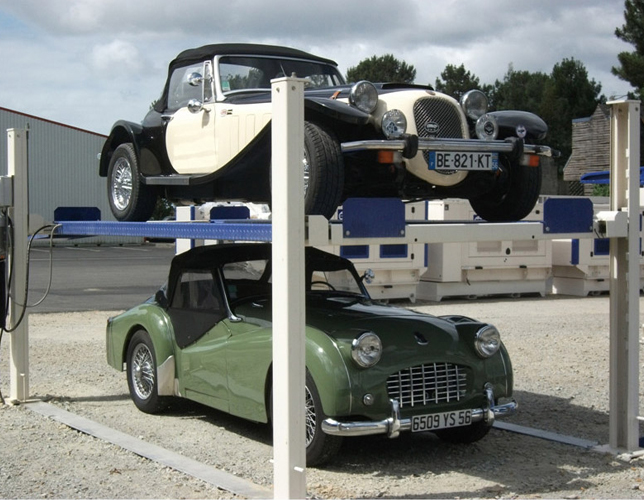

2. This is two level design parking system on ground, each unit can park 2 cars.

3. It moves only vertically, so the users have to clear the ground level to get the higher level car down.

4. Easy to operate and well-engineered with a 3700kg load capacity.

5. 3700kg capacity makes it possible for heavy duty vehicles.

6. 2100mm usable platform width makes it much easier for parking and retrieve.

7. Platform can be stopped at different heights to fit for various vehicles and ceiling heights.

8. High polymer polyethylene, wear-resistant slide blocks.

9. Platform runway and ramps made of diamond steel plates.

10. Optional movable wave plate or diamond plate in the middle.

11. Anti-falling mechanical locks in four post at different heights to ensure safety.

12. Powder spray coating surface treatment for indoor use hot galvanizing for outdoor use.







Specifications:

Model No.



Parking Vehicles

Lifting Capacity

Lifting Height

Width Between Runways

Rise/Drop Time

Power Supply

CHFL3700(E)

2 cars

3500kg

1800mm/2100mm

1895.5mm

60s/90s

220V/380V


Drawing
