Feature:

1. Tilting column and pneumatic locking mount & demount arm;

2. Hexagonal shaft oriented tube extends to 270mm can prevent effectively deformation of hexagonal;shaft:

3. Foot valve fine structure can be demount as a whole, operation stably and reliably, and easy maintenance;

4. Automatic mount & demount head, operation easy; main shaft pneumatic  locking fast and reliable:

5. Touchless structure, can mounting & demount tyres more convenient;

6. With external air tank for quick inflation , controlled by a unique foot valve and hand-held for pneumatic device;(optional)

7. With pneumatic helper arm for handing wide, low-profile and stiff tyres.





Specifications:

Motor power

1.1kw/0.75kw/0.55kw

Power supply

110V/220V/240V/380V/415V

Max. wheel diameter

41"/1043mm

Max. wheel width

14"/360mm

Inside clamping

12"-24"

Air supply

8-10bar

Rotation speed

6rpm

Bead breaker force

2500Kg

Noise level

<70dB

Weight

419Kg

Package size

860*1330*1980mm

8 units can be loaded into one 20”container

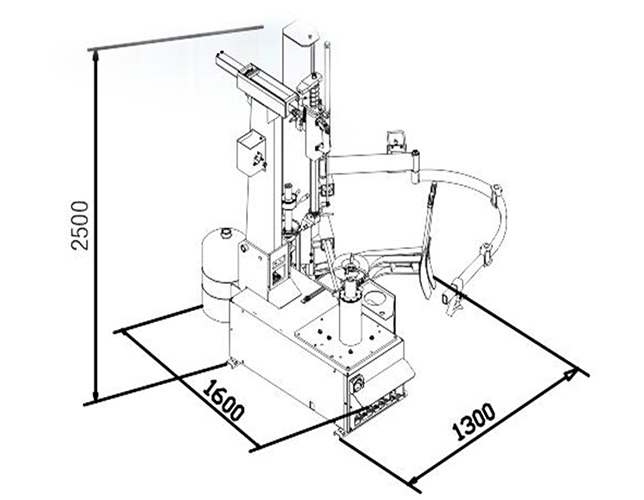

Drawing
