Feature:

1. Suitable for all types of vehicles

2. Least cover area than other automated parking systems

3. Up to 10 times space saving than traditional parking

4. Quick time of car retrieval

5. Easy to operate

6. Modular and simpler installation, averaging 5 days per system

7. Quiet operation, low noise to neighbors

8. Car protection against dents, weather elements, corrosive agents and vandalism

9. Reduced exhaust emissions driving up & down aisles and ramps looking for a space

10. Optimal ROI and short payback period

11. Possible relocation & reinstallation

12. Wide range of applications including public areas, office buildings, hotels, hospitals, shopping malls, and car showrooms, etc.





Specifications:

Products Name

mechanical parking equipment

Model No.

PCX8D

PCX10D

PCX12D

PCX14D

PCX16D

PCX8DH

PCX10DH

PCX12DH

PCX14DH

Type of mechanical parking

Vertical Rotary

 Dimension(mm)

Length(mm)

6500

6500

6500

6500

6500

6500

6500

6500

6500


Width(mm)

5200

5200

5200

5200

5200

5400

5400

5400

5400


Height(mm)

9920

11760

13600

15440

17280

12100

14400

16700

19000

Parking Capacity (cars)

8

10

12

14

16

8

10

12

14





Available car

Length(mm)

5300

5300

5300

5300

5300

5300

5300

5300

5300


Width(mm)

1850

1850

1850

1850

1850

1950

1950

1950

1950


Height(mm)

1550

1550

1550

1550

1550

2000

2000

2000

2000


Weight(kgf)

1800

1800

1800

1800

1800

2500

2500

2500

2500

Motor(kw)

7.5

7.5

9.2

11

15

7.5

9.2

15

18

Operation type

Button+ Card

Noise level

?50bd

Available temperature

-40 degree-+40 degree

Relative humidity

70% (No obvious water droplets)

Protection

IP55


Three-phase five wire 380V 50HZ

Parking manner

Forward parking & Reverse retrieving



Safety factor

lifting system



steel structure


Control mode

PLC control

Running Control mode

Double system Power frequency and frequency conversion

Drive mode

Motor + reducer + chain

CE certificate

Certificate number:M.2016.201.Y1710

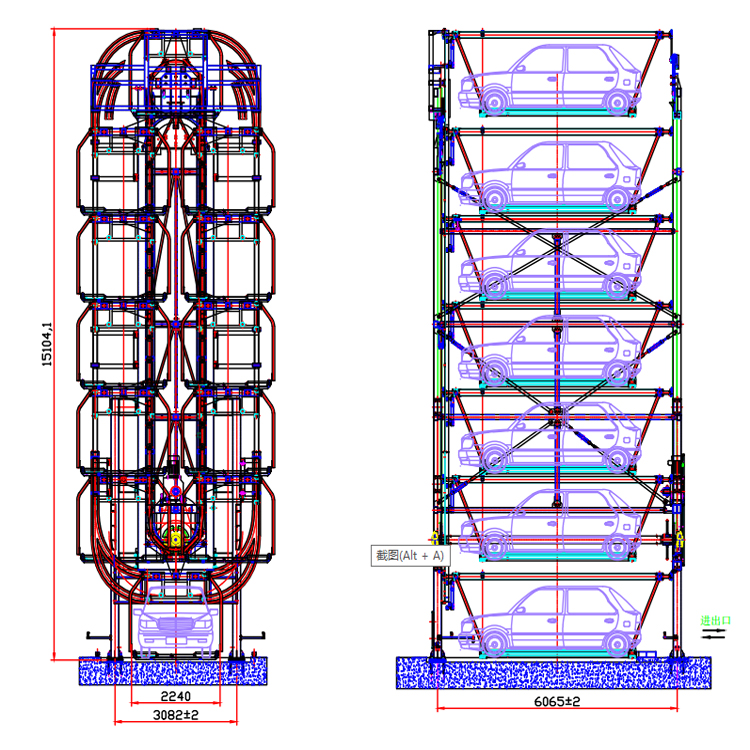

Drawing
