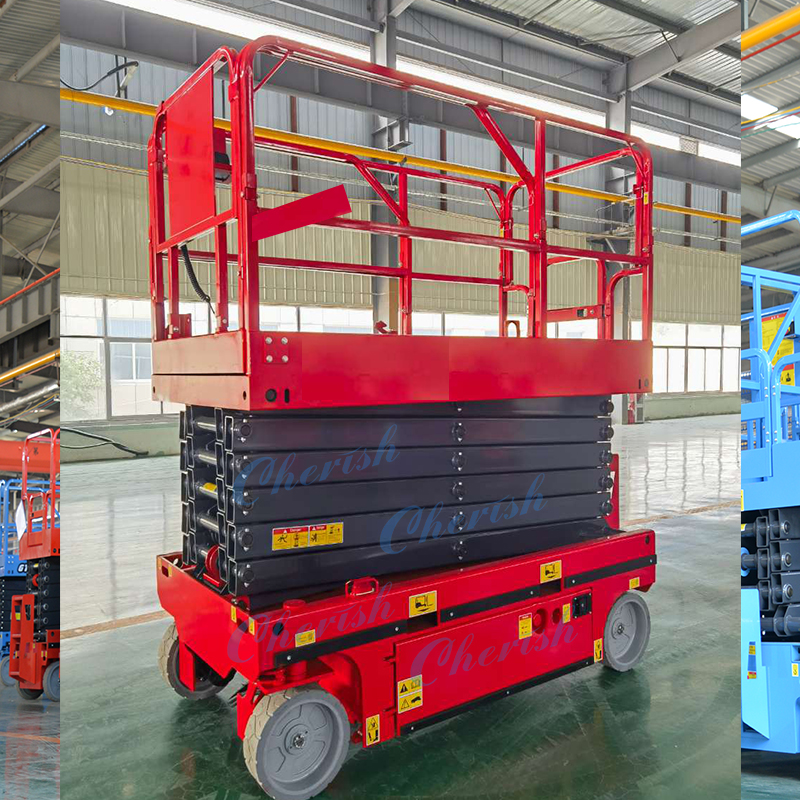

Feature:

1.Hydraulic drive platform lifting, walking.

2.Full height driving, equipped with a variety of safety protection devices, high safety.

3.oil pipe explosion-proof valve and steelmesh hydraulic oil pipe, enhance the safety of oil circuit.

4. It is suitable for airportterminal,station, wharf,shopping mall, gymnasium, communityproperty, factory workshop, etc.




Specifications:

Model GTJZ-6A GTJZ6 GTJZ-8A GTJZ8 GTJZ10 GTJZ12 GTJZ14
Load   Capacity (kg)380550230450320320227
Platform   Size(mm)2260*810 2260*1130 2260*810 2260*1130 2260*1130 2260*1130 2640*1130
Max   Platform Height(m)66881011.813.8
Platform   Extension(m)0.90.90.90.90.90.90.9
Overall   Dimensions(mm)2475*810*2158 2475*1150*2158 2475*810*2286 2475*1150*2286 2475*1150*2414 2475*1150*2542 2840*1390*2590
Equipment   Weight(kg)1850206019802190243029603320


Drawing
